Saturday, October 20, 2012

IGNIS (PHILIPS) AFE259/IG (AFB701) YEAR 1990.











I just rescued this and  runs quite well. Setting the thermostat on " 4 " it's reaching -25°C quickly.

 The IGNIS (PHILIPS)  AFE259/IG (AFB701)  was badly used and unfair maintained and dumped in working order.


Interesting the door adesive sticker saying "Less 50% R-11 (CFC-11 blowing agent), see picture above.
From its introduction during the late 1970s, the polyisocyanurate industry was using CFC-11 as a blowing agent. Prior to 1993, almost all refrigerators used CFC-11 CFC-12 as the blowing agent in the polyurethane foam.



The IGNIS (PHILIPS)  AFE259/IG (AFB701) is a deep freezer , a stand-alone freezer unit for preserving food in contrast to a freezer atop a refrigerator and it is made by IRE INDUSTRIE RIUNITE EURODOMESTICI S.P.A. CASINETA DI BIANDRONO VARESE in Italy when IGNIS was part of PHILIPS.
The equivalent model is PHILIPS AFB701.

This is last PHILIPS made Freezer with:

- R12 refrigerant,
- CFC products as blowing agents,
- Last under PHILIPS / IGNIS / IRE fabrication control .

Compressor IRE L13A18. R12 150 WATT.

 IGNIS, GIOVANNI BORGHI HISTORY.

 Investing in the industrial development of artisan villages
in Varese, Italy, Giovanni Borghi builds a factory for 200
employees to manufacture not only ovens and cooktops, but
also an appliance previously unknown in Italy: the refrigerator.
Ignis workers produce appliances for third-party companies
like Fiat, Atlantic, Philco, Emerson and Philips. Borghi builds
the “Villages of Ignis,” with affordable one- and two-family
houses (Borghi Villages), as well as a pool and sports center
in Comerio, Italy, and a hostel vvith recreational facilities for
young workers in Cassinetta, Italy, all intended to promote a
comfortable, healthy lifestyle.

  The Milan industrialist Giovanni Borghi founded the IGNIS brand of household appliances.  His factories would turn out one appliance every eight seconds, and make billions selling them to Italy's exploding middle class.   Borghi was famous for his early support of cycling, and his yellow IGNIS jerseyed squadra won more than a few great races in the late fifties and early sixties.

Borghi was aggressive, flamboyant and flashy.  And he took care of his stars - famously buying Spanish sprinter Miguel Poblet a Lancia convertible after his Milan San Remo win.   On top of his 25 million lire per year salary.

Giovanni Borghi, was an Italian industrialist pioneer in the field of domestic appliances, returned from a trip in the USA with a real
illumination: refrigerators insulated with Polyurethane foam were much more
efficient and capacious than those hand-filled with mineral wood.
His refrigerators Group, Ignis, developed internally this technology and the
related equipment, a suitable alternative to the imported foam dispensers, which
were difficult to get, fix and maintain, stimulating an industrial supply of
similar machines.

 And in 1959 Borghi signed the man most of Italy thought would be the man to replace Fausto Coppi:  1956 Olympic, 1958 Giro d'Italia and World Champion  Ercole Baldini.  He lured Baldini away from Legnano with a contract so fat many said it only served to asurre that il treno di Forli.. would...well...get a little too fat himself!  He was never quite as hungry once he went to IGNIS.

Borghi kept control of IGNIS in the family.  In the paternalistic Italian industrial model - like Ferrari, Maserati or Campagnolo.   He later turned the reins over to his son, who in turn finally sold the company to Dutch conglomerate, Philips.


When Philips decided to get into the major household appliances
market, its procedure was to buy increasing quantities of these goods from the Italian firm, Ignis, then at the height of its prosperity.
Once it became the principal client of the manufacturer, it took over supplying the latter by purchasing 50 percent of its capital. It took over the firm completely in 1972, to the satisfaction of the founder of Ignis, Giovanni Borghi.


BORGHI DIED IN 1975.

Borghi is still remembered in Italia.   RAI even aired TV miniseries about his life this past year, "Mister Ignis".



Koninklijke Philips Electronics N.V. (Royal Philips Electronics Inc.), most commonly known as Philips, (Euronext: PHIA, NYSE: PHG) is a multinational Dutch electronics corporation.

Philips is one of the largest electronics companies in the world. In 2009, its sales were €23.18 billion. The company employs 115,924 people in more than 60 countries.[1]

Philips is organized in a number of sectors: Philips Consumer Lifestyles (formerly Philips Consumer Electronics and Philips Domestic Appliances and Personal Care), Philips Lighting and Philips Healthcare (formerly Philips Medical Systems).
The company was founded in 1891 by Gerard Philips, a maternal cousin of Karl Marx, in Eindhoven, Netherlands. Its first products were light bulbs and other electro-technical equipment. Its first factory survives as a museum devoted to light sculpture.[2] In the 1920s, the company started to manufacture other products, such as vacuum tubes (also known worldwide as 'valves'), In 1927 they acquired the British electronic valve manufacturers Mullard and in 1932 the German tube manufacturer Valvo, both of which became subsidiaries. In 1939 they introduced their electric razor, the Philishave (marketed in the USA using the Norelco brand name).

Philips was also instrumental in the revival of the Stirling engine.

As a chip maker, Philips Semiconductors was among the Worldwide Top 20 Semiconductor Sales Leaders.

In December 2005 Philips announced its intention to make the Semiconductor Division into a separate legal entity. This process of "disentanglement" was completed on 1 October 2006.

On 2 August 2006, Philips completed an agreement to sell a controlling 80.1% stake in Philips Semiconductors to a consortium of private equity investors consisting of Kohlberg Kravis Roberts & Co. (KKR), Silver Lake Partners and AlpInvest Partners. The sale completed a process, which began December 2005, with its decision to create a separate legal entity for Semiconductors and to pursue all strategic options. Six weeks before, ahead of its online dialogue, through a letter to 8,000 of Philips managers, it was announced that they were speeding up the transformation of Semiconductors into a stand-alone entity with majority ownership by a third party. It was stated then that "this is much more than just a transaction: it is probably the most significant milestone on a long journey of change for Philips and the beginning of a new chapter for everyone – especially those involved with Semiconductors".

In its more than 115 year history, this counts as a big step that is definitely changing the profile of the company. Philips was one of few companies that successfully made the transition from the electrical world of the 19th century into the electronic age, starting its semiconductor activity in 1953 and building it into a global top 10 player in its industry. As such, Semiconductors was at the heart of many innovations in Philips over the past 50 years.

Agreeing to start a process that would ultimately lead to the decision to sell the Semiconductor Division therefore was one of the toughest decisions that the Board of Management ever had to make.

On 21 August 2006, Bain Capital and Apax Partners announced that they had signed definitive commitments to join the expanded consortium headed by KKR that is to acquire the controlling stake in the Semiconductors Division.

On 1 September 2006, it was announced in Berlin that the name of the new semiconductor company founded by Philips is NXP Semiconductors.

Coinciding with the sale of the Semiconductor Division, Philips also announced that they would drop the word 'Electronics' from the company name, thus becoming simply Koninklijke Philips N.V. (Royal Philips N.V.).


PHILIPS FOUNDATION:

The foundations of Philips were laid in 1891 when Anton and Gerard Philips established Philips & Co. in Eindhoven, the Netherlands. The company begun manufacturing carbon-filament lamps and by the turn of the century, had become one of the largest producers in Europe. Stimulated by the industrial revolution in Europe, Philips’ first research laboratory started introducing its first innovations in the x-ray and radio technology. Over the years, the list of inventions has only been growing to include many breakthroughs that have continued to enrich people’s everyday lives.




In the early years of Philips & Co., the representation of the company name took many forms: one was an emblem formed by the initial letters of Philips & Co., and another was the word Philips printed on the glass of metal filament lamps.



One of the very first campaigns was launched in 1898 when Anton Philips used a range of postcards showing the Dutch national costumes as marketing tools. Each letter of the word Philips was printed in a row of light bulbs as at the top of every card. In the late 1920s, the Philips name began to take on the form that we recognize today.



The now familiar Philips waves and stars first appeared in 1926 on the packaging of miniwatt radio valves, as well as on the Philigraph, an early sound recording device. The waves symbolized radio waves, while the stars represented the ether of the evening sky through which the radio waves would travel.



In 1930 it was the first time that the four stars flanking the three waves were placed together in a circle. After that, the stars and waves started appearing on radios and gramophones, featuring this circle as part of their design. Gradually the use of the circle emblem was then extended to advertising materials and other products.



At this time Philips’ business activities were expanding rapidly and the company wanted to find a trademark that would uniquely represent Philips, but one that would also avoid legal problems with the owners of other well-known circular emblems. This wish resulted in the combination of the Philips circle and the wordmark within the shield emblem.



In 1938, the Philips shield made its first appearance. Although modified over the years, the basic design has remained constant ever since and, together with the wordmark, gives Philips the distinctive identity that is still embraced today.



Gerard Philips:

Gerard Leonard Frederik Philips (October 9, 1858, in Zaltbommel – January 27, 1942, in The Hague, Netherlands) was a Dutch industrialist, co-founder (with his father Frederik Philips) of the Philips Company as a family business in 1891. Gerard and his younger brother Anton Philips changed the business to a corporation by founding in 1912 the NV Philips' Gloeilampenfabrieken. As the first CEO of the Philips corporation, Gerard laid with Anton the base for the later Philips multinational.



Early life and education

Gerard was the first son of Benjamin Frederik David Philips (1 December 1830 – 12 June 1900) and Maria Heyligers (1836 – 1921). His father was active in the tobacco business and a banker at Zaltbommel in the Netherlands; he was a first cousin of Karl Marx.



Career

Gerard Philips became interested in electronics and engineering. Frederik was the financier for Gerard's purchase of the old factory building in Eindhoven where he established the first factory in 1891. They operated the Philips Company as a family business for more than a decade.




Marriage and family

On March 19, 1896 Philips married Johanna van der Willigen (30 September 1862 – 1942). They had no children.

Gerard was an uncle of Frits Philips, whom he and his brother brought into the business. Later they brought in his brother's grandson, Franz Otten.


Gerard and his brother Anton supported education and social programs in Eindhoven, including the Philips Sport Vereniging (Philips Sports Association), which they founded. From it the professional football (soccer) department developed into the independent Philips Sport Vereniging N.V.



Anton Philips:

Anton Frederik Philips (March 14, 1874, Zaltbommel, Gelderland – October 7, 1951, Eindhoven) co-founded Royal Philips Electronics N.V. in 1912 with his older brother Gerard Philips in Eindhoven, the Netherlands. He served as CEO of the company from 1922 to 1939.



Early life and education

Anton was born to Maria Heyligers (1836 – 1921) and Benjamin Frederik David Philips (December 1, 1830 – June 12, 1900). His father was active in the tobacco business and a banker at Zaltbommel in the Netherlands. (He was a first cousin to Karl Marx.) Anton's brother Gerard was 16 years older.



Career

In May 1891 the father Frederik was the financier and, with his son Gerard Philips, co-founder of the Philips Company as a family business. In 1912 Anton joined the firm, which they named Royal Philips Electronics N.V.

During World War I, Anton Philips managed to increase sales by taking advantage of a boycott of German goods in several countries. He provided the markets with alternative products.

Anton (and his brother Gerard) are remembered as being civic-minded. In Eindhoven they supported education and social programs and facilities, such as the soccer department of the Philips Sports Association as the best-known example.

Anton Philips brought his son Frits Philips and grandson Franz Otten into the company in their times. Anton took the young Franz Otten with him and other family members to escape the Netherlands just before the Nazi Occupation during World War II; they went to the United States. They returned after the war.

His son Frits Philips chose to stay and manage the company during the occupation; he survived several months at the concentration camp of Vught after his workers went on strike. He saved the lives of 382 Jews by claiming them as indispensable to his factory, and thus helped them evade Nazi roundups and deportation to concentration camps.

Philips died in Eindhoven in 1951.



Marriage and family

Philips married Anne Henriëtte Elisabeth Maria de Jongh (Amersfoort, May 30, 1878 – Eindhoven, March 7, 1970). They had the following children:

* Anna Elisabeth Cornelia Philips (June 19, 1899 – ?), married in 1925 to Pieter Franciscus Sylvester Otten (1895 – 1969), and had:
o Diek Otten
o Franz Otten (b. c. 1928 - d. 1967), manager in the Dutch electronics company Philips
* Frederik Jacques Philips (1905-2005)
* Henriëtte Anna Philips (Eindhoven, October 26, 1906 – ?), married firstly to A. Knappert (d. 1932), without issue; married secondly to G. Jonkheer Sandberg (d. September 5, 1935), without issue; and married thirdly in New York City, New York, on September 29, 1938 to Jonkheer Gerrit van Riemsdijk (Aerdenhout, January 10, 1911 – Eindhoven, November 8, 2005). They had the following children:
o ..., Jonkheerin Gerrit van Riemsdijk (b. Waalre, October 2, 1939), married at Waalre on February 17, 1968 to Johannes Jasper Tuijt (b. Atjeh, Koeta Radja, March 10, 1930), son of Jacobus Tuijt and wife Hedwig Jager, without issue
o ..., Jonkheerin Gerrit van Riemsdijk (b. Waalre, April 3, 1946), married firstly at Calvados, Falaise, on June 6, 1974 to Martinus Jan Petrus Vermooten (Utrecht, September 16, 1939 РFalaise, August 29, 1978), son of Martinus Vermooten and wife Anna Pieternella Hendrika Kwantes, without issue; married secondly in Paris on December 12, 1981 to Jean Yves Louis Bedos (Calvados, R̩my, January 9, 1947 РCalvados, Lisieux, October 5, 1982), son of Georges Charles Bedos and wife Henriette Louise Piel, without issue; and married thirdly at Manche, Sartilly, on September 21, 1985 to Arnaud Evain (b. Ardennes, Sedan, July 7, 1952), son of Jean Claude Evain and wife Flore Halleux, without issue
o ..., Jonkheerin Gerrit van Riemsdijk (b. Waalre, September 4, 1948), married at Waalre, October 28, 1972 to Elie Johan François van Dissel (b. Eindhoven, October 9, 1948), son of Willem Pieter
Jacob van Dissel and wife Francisca Frederike Marie Wirtz, without issue.










Friday, October 19, 2012

REX (ZANUSSI) RI230/2T YEAR 1979.















The REX  RI230/2T  is last ZANUSSI fabricated refrigerator in 1979  and it's therefore an original ZANUSSI industry fabricated.

Even this was scrapped only because it's old but in fully functional order.


Obviously it was dirty, kitchen greased, kitchen smoked, and dusty, without internal grids and vegetables  drawer, so I've cleaned and fully restored.

The REX (ZANUSSI)   RI230/2T  Refrigerator is really a beast it comes Up to evaporation In the Freezer compartment in 15 sec after compressor start  even waiting a 24Hr complete stop and the Freezer compartment it's cooled in a time inferior  as 20 mins.


It's super silent ........almost noiseless...........

All parts are original, the refrigerator was very heavily used, poor maintained  (or even nothing) and throwed away............in working order after almost 36  years of work.................. (what a grateful life !).

These models were the best house kitchen refrigerator series, simple construction, everlasting, eveready, no problem easy fridge.

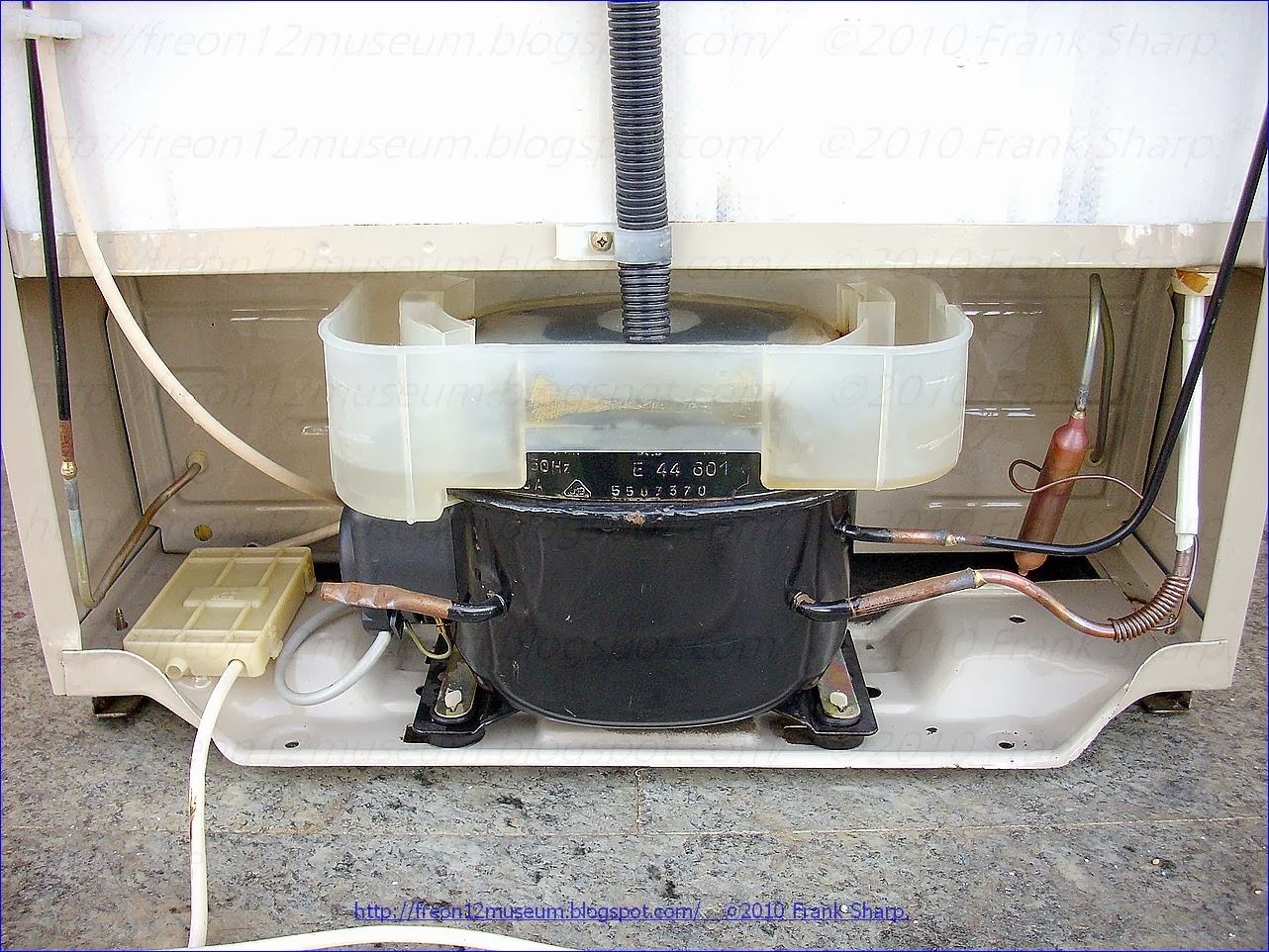

Compressor ZANUSSI MEL  ZEM (Zanussi Elettro Meccanica)  E44601 R12.

Many contemporary appliances would not have this level of staying power, many would ware out or require major services within just five years or less and of course, there is that perennial bug bear of planned obsolescence where components our deliberately designed to fail or manufactured with limited edition specificities..............................
REX  (ZANUSSI)  RI230/2T REFRIGERATING APPLIANCE WITH SINGLE THERMOSTATIC TEMPERATURE CONTROL DEVICE:


The present invention relates to a refrigerating appliance comprising a refrigerating circuit provided with a thermostatic temperature control arrangement.
Particularly, but not exclusively, the present invention relates to a multi-temperature refrigerating appliance provided with a single thermostatic temperature control device.
Two-temperature refrigerating appliances are well known, having two main compartments which are kept at different temperatures and provided with independent access doors. Usually, one of the compartments is maintained at an average temperature of about + 5 DEG C for preserving fresh goods, whereas the other compartment is maintained at an average temperature of about - 18 DEG C for freezing purposes.
Preferably, such refrigerating appliances utilize one single-compressor refrigerating circuit in which two evaporators associated with relevant storage and freezer compartments are connected in series. An embodiment of this kind is for instance disclosed in EP-A-0 298 349.
The temperature in the refrigerating appliance, determined by alternate operative and inoperative phases of the compressor, is usually controlled by means of a single thermostatic control device which is capable of sensing, directly or indirectly, the temperature of the evaporator associated with the storage compartment.
More particularly, the compressor is actuated when the temperature of the storage compartment evaporator exceeds a given maximum value and is deenergized, in order to perform a corresponding defrost phase of the storage compartment evaporator, when the above temperature falls below a predetermined minimum value. The temperature inside the compartments depends on the ON/OFF ratio in the operating cycle of the compressor, as well as on the general dimensions of the refrigerating appliance, its loading conditions and the ambient temperature.
It is known, in this condition, that when the ambient temperature is particularly low the thermostatic control device makes the compressor run with correspondingly reduced operative phases with respect to the inoperative phases, in order to maintain the predetermined average temperature of approx. + 5 DEG C in the storage compartment. Under these operating conditions, therefore, the freezer compartment is likely to be cooled insufficiently by the associated evaporator, with a consequent deterioration of the goods contained in the freezer compartment itself. Anyway, the long inoperative phases of the compressor in case of particularly low ambient temperature cause undesirably wide temperature fluctuations to occur in both compartments, and this is in contrast with a desirable correct operation.
In order to overcome the above drawbacks it is common practice to provide a so-called "balancing" heating element (consisting of a heating resistance, for example) in the storage compartment, the heating element being controlled by the thermostatic control device to be actuated in place of the compressor during the inoperative phases of the compressor itself.
The amount of heat generated by the balancing resistance during the defrost phases of the storage compartment evaporator artificially compensated for the low ambient temperature, in this way promoting a better ratio between the ON and OFF phases of the compressor, thus enabling the freezer compartment to be refrigerated correctly and causing narrower temperature fluctuations to occur in both compartments.

REX  (ZANUSSI)  RI230/2T Temperature control for a cycle defrost refrigerator incorporating a roll-bonded evaporator :

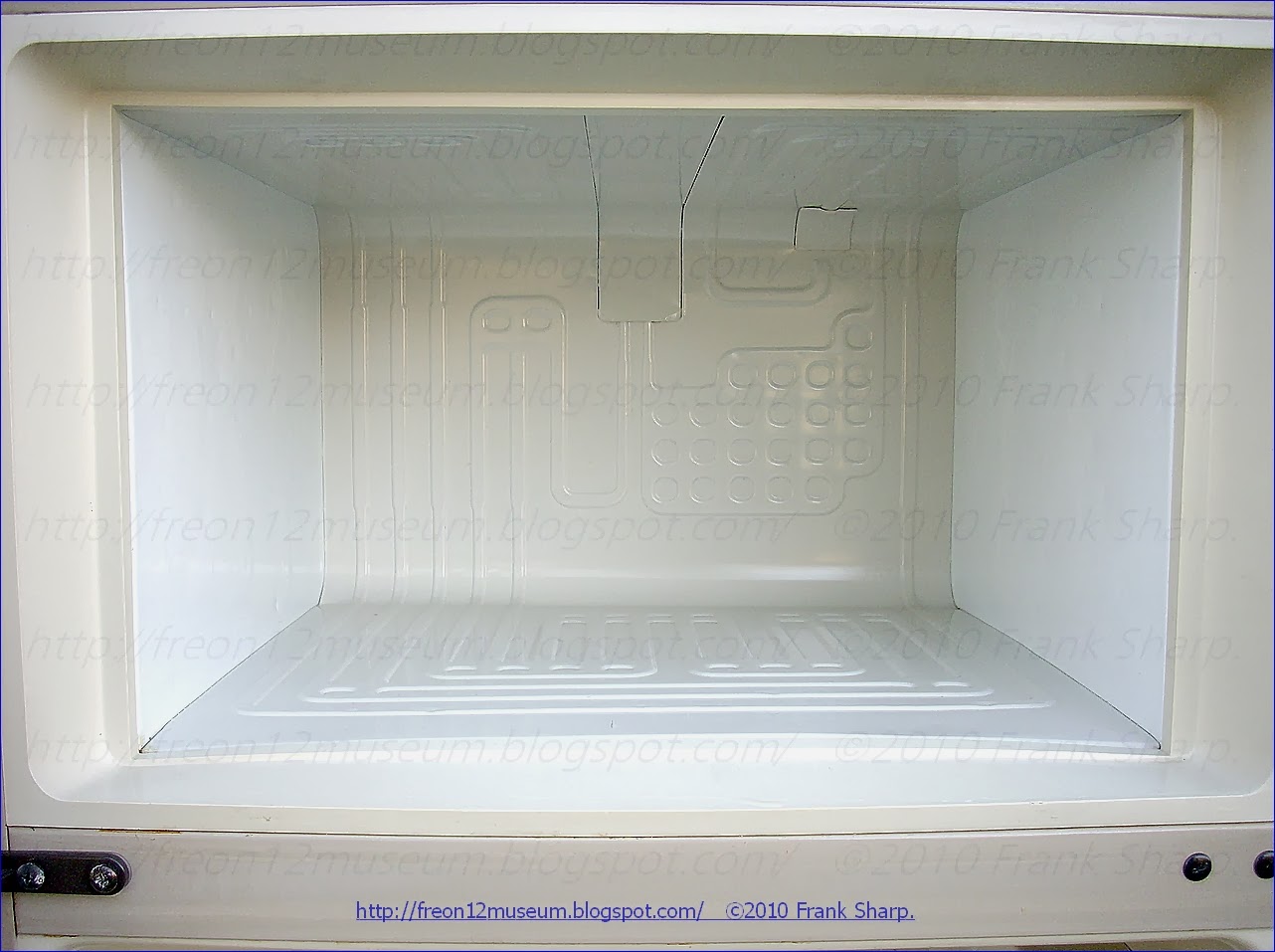

 A temperature control system for a refrigerator including a roll-bonded evaporator in the fresh food compartment in which is formed a non-refrigerant carrying passageway extending the full width of the evaporator. A temperature control located in the compartment includes a temperature sensitive capillary tube portion extending substantially the full length of the passageway so as to be subjected to the limited environment of the passageway and accordingly responsive to the true temperature of the evaporator.

 1. A cycle defrost household refrigerator including a cabinet having an upper lower temperature food compartment and a lower relatively high temperature food compartment, evaporator means for refrigerating said compartments comprising:
a first evaporator located in said low temperature compartment and a second evaporator arranged substantially vertically in said relatively high temperature compartment and connected to said first evaporator in series refrigerant flow relationship;
means for supplying liquid refrigerant to said liquid carrying conduits in said first and second sections in series and for withdrawing evaporated refrigerant therefrom;
a temperature control means in said high temperature food compartment including a temperature sensitive capillary tube portion having a length corresponding substantially to the width of said second evaporator;
said temperature control being operable by the coldest temperature sensed along the length of said capillary for causing said compressor to cycle off to cause defrosting of said section of said evaporator;
a passageway positioned in heat exchange relationship to said second evaporator extending substantially the entire width between the vertical sides thereof;
said passageway having a cross-sectional dimension for allowing insertion of said capillary tube portion to a position substantially the full length of said passageway and for insuring thermal relationship between said capillary tube portion and said passageway so that said capillary tube portion is subjected to the limited environment of said passageway and the temperature of said second section.


2. The household refrigerator recited in claim 1 wherein said passageway is arranged below the liquid carrying conduits.

3. The household refrigerator recited in claim 2 wherein said passageway is formed to include a central apex from which said passageway extends downwardly and outwardly.

4. The household refrigerator recited in claim 3 wherein there is further provided a drain means located below said passageway for receiving defrost water from said second section of said evaporator.

5. A cycle defrost household refrigerator including a cabinet having an upper low temperature food compartment and a lower relatively high temperature food compartment, evaporator means for refrigerating said compartments comprising: a one piece evaporator formed of a pair of sheets roll-forged together to include liquid carrying conduits between said sheets, said evaporator having a first section located in said low temperature compartment formed in a U-shape to include a back wall portion having substantially horizontally extending upper and lower wall portions and having a second section arranged substantially vertically in said relatively high temperature compartment and connected to said first section by means of a relatively narrow neck portion;
means for supplying liquid refrigerant to said liquid carrying conduits in said first and second sections in series and for withdrawing evaporated refrigerant therefrom;
a temperature control means in said high temperature food compartment including a temperature sensitive capillary tube portion having a length corresponding substantially to the width of said second evaporator.
said temperature control being operable by the coldest temperature sensed along the length of said capillary for causing said compressor to cycle off to cause defrosting of said section of said evaporator.
a passageway formed between the pair of sheets of said second section extending substantially the entire width between the vertical sides thereof;
said passageway having a cross-sectional dimension for allowing insertion of said capillary tube portion to a position substantially the full length of said passageway and insuring thermal relationship between said capillary tube portion and said passageway so that said capillary tube portion is subjected to the limited environment of said passageway and the temperature of said second section.


6. The household refrigerator recited in claim 5 wherein said passageway is arranged below the liquid carrying conduits.

7. The household refrigerator recited in claim 6 wherein said passageway is formed to include a central apex from which said passageway extends downwardly and outwardly.

8. The household refrigerator recited in claim 7 wherein there is further provided a drain means located below said passageway for receiving defrost water from said second section of said evaporator.

Description:
BACKGROUND OF THE INVENTION
The present invention relates to cycle defrost refrigerator wherein defrost of the fresh food compartment evaporator is accomplished during the compressor OFF cycle primarily by convection of the relatively warm above freezing fresh food compartment air and through the heat leakage entering the fresh food compartment and more particularly to a control system for a cycle defrost refrigerator incorporating a roll-bond evaporator.
Generally in a cycle defrost refrigerator the temperature of the fresh food compartment is maintained by sensing the true temperature of the evaporator. This requires that the entire length of the thermostat control capillary tube be maintained in heat exchange relationship with the evaporator. Traditionally many cycle defrost refrigerators suffer from the inability of the control capillary to sense the true fresh food evaporator conditions under critical usage conditions. This often results from the inconsistencies of arranging the control capillary tube relative to the fresh food evaporator so that it will sense accurate evaporator conditions. These control errors often result in residual icing problems, premature compressor trip-offs, and a wide dispersal of operating response characteristics. One common manner of securing the control capillary to the evaporator to insure that the full length of the capillary tube is in contact with the evaporator has been to employ a plurality of clamps spaced along the entire length of the capillary tube. This method requires the use of external parts and labor to secure them to the evaporator and falls short of solving the problem since the relatively small diameter capillary tube realistically cannot conform to the surface of the evaporator.

SUMMARY OF THE INVENTION
An object of the present invention is to provide a passageway which extends across the full width of the roll-bonded plate evaporator and whose cross-sectional area assures introduction of the capillary tube to a position occupying the full length of the passageway so that it is in contact with the walls of the passageway.
By the present invention there is provided in a houshold refrigerator having an upper low temperature food compartment and a lower relatively high temperature food compartment including a one-piece evaporator for refrigerating the compartments. The one piece evaporator is formed of a pair of sheets roll-forged together to include liquid carrying conduits between the sheets. The evaporator has a first section located in the low temperature compartment and a second section arranged substantially vertically in the relatively high temperature compartment and connected to the first section by means of a relatively narrow neck portion. A hermetic compressor supplies liquid refrigerant to the liquid carrying conduits in the evaporator sections in series and for withdrawing evaporated refrigerant therefrom. Located in the high temperature compartment is a temperature control means including a temperature sensitive capillary tube portion. A passageway is formed between the pair of sheets of the second section of the evaporator. The passageway is located below the liquid carrying conduits and extends between the vertical edges of the second section. The passageway has a cross-sectional area which is dimensioned to allow easy insertion of the capillary tube to a position where it occupies substantially the full length of the passageway while at the same time insuring accurate thermal response between the temperature sensitive capillary tube portion and passageway walls so that the capillary tube portion is subjected to the limited environment of the passageway and accordingly the true temperature of the second section of the evaporator.

BRIEF DESCRIPTION OF THE DRAWINGS
FIG. 1 is a sectional view of a two compartment refrigerator incorporating the present invention;
FIG. 2 is a partial front elevational view with the cabinet door removed showing the lower compartment evaporator incorporating the present invention;
FIG. 3 is an enlarged cross-sectional view along line 3--3 of FIG. 2 showing the arrangement of the control tube in conjunction with the illustrated embodiment of the present invention; and
FIG. 4 is a diagramatic showing of the one-piece two-section evaporator incorporated in the embodiment of the present invention.


BRIEF DESCRIPTION OF THE INVENTION
Referring now to the drawing wherein a preferred embodiment of the invention has been shown, reference numeral 10 generally designates a conventional insulated refrigerator cabinet having a below freezing frozen food compartment 12 disposed in the upper part of the cabinet, an above freezing main food storage compartment 14 disposed below the freezer compartment 12, and a machinery compartment 16 arranged in the bottom portion of the cabinet. The frozen food compartment 12 is adapted to be maintained at a temperature low enough to properly preserve frozen food for long periods of time. Thus, the temperature therein is preferably maintained somewhere between -10° F. and 10° F. The main food storage compartment 14 is preferably maintained at temperatures above freezing but low enough to properly refrigerate perishable unfrozen foods. It has been found that temperatures in the range of 37° to 40 20 F. are most satisfactory for this purpose.
The compartments 12 and 14 are refrigerated by a one-piece roll-forged evaporator including evaporators sections 20 and 22 respectively which are connected in series flow in the refrigerant circuit. The refrigerating system used for maintaining the compartments 12 and 14 within the desired temperature ranges mentioned above employs a conventional motor compressor unit 18 which is adapted to be mounted in the machinery compartment 16 and which discharges compressed refrigerant into the condenser 24 positioned across the outside back wall of the refrigerator. Condensed liquid refrigerant from the condenser 24 then flow thru a conventional capillary tube (not shown) to the evaporator section 20 located in the freezer compartment and then to the series connected evaporator section 22 located in the food storage compartment 14.

The evaporators sections 20 and 22 are fabricated from two superimposed planar sheets made in one piece by a roll-forging operation. While the present invention does not reside in a roll-forging method as such, a brief general description of this method is included in order to facilitate a complete understanding of all aspects of the invention. The pair of sheets are superimposed upon one another with a pattern of stop-weld material coated on the one sheet. The stop-weld material provided between the sheets prevents the sheets from adhering to one another throughout the coated area. Following the roll-forging operation fluid under pressure is supplied between the sheets so as to dilate the sheets for the purpose of forming refrigerant passages corresponding to the pattern of the stop-weld material. The stop-weld material is so applied that the internal refrigerant passages extend throughout the major portion of the plate and in effect form two spaced evaporator sections connected in series refrigerant flow relationship. A slot 26 is cut in the composite plate after the roll-forging operation as shown in FIG. 4 so as to separate the evaporator section 20 from evaporator section 22 except at the narrow neck 28.


This narrow neck 28 includes a refrigerant passages 30 (FIGS. 2 & 4), which connects the evaporator section 20 in series with the evaporator section 22. In installing the evaporator sections 20 and 22 in the cabinet the evaporator section 22 may be arranged as shown in FIG. 2 with its vertical side edges 32 adjacent to side walls 34 of the food storage compartment cabinet and substantially parallel to the rear wall of compartment 14 as shown in FIG. 1. The evaporator section 20 as best shown in FIGS. 1 and 4 is folded into a U-shape configuration including a back wall 36 and horizontally extending top and bottom walls 38. It should be noted that other configurations of the freezer compartment evaporator may be used in conjunction with the present invention.
The temperature of the fresh food compartment 14 is regulated by a thermostatically operated temperature control 40 mounted on one side wall 34 in the compartment 14. The control 40 includes a manually adjustable control knob 41 used to select the fresh food compartment temperature and a control capillary tube 42 arranged as will be explained fully to be in contact with the lower portion of the evaporator section 22. The control 40 is used for starting and stopping the motor compressor unit 18 in response to the selected refrigeration requirements. The control 40 is of the type which is adapted to close the circuit to the motor compressor unit 18 when the temperature of the coldest portion of the control capillary 42 is a few degrees above the melting temperature of the frost which may form on the evaporator section 22 during the "ON" cycle of the compressor and is adapted to open the circuit to the compressor when the temperature of the coldest portion of the control capillary 42 approaches the selected evaporator OFF temperature. The relative sizes of the evaporators 20 and 22 and the arrangement of the passages therein are such to provide for automatic defrosting of the evaporator section 22 during the OFF cycle without defrosting the evaporator section 20. It is important to note that the control capillary 42 responds to evaporator temperatures rather than the temperature of the air in the food compartment as it has been found that the temperature of the air in the food storage compartment may be maintained substantially between 37° and 40° F. at all times even though the temperature of the evaporator 22 sensed by the bulb 42 fluctuates over a wide range such as -6° F. to 37° F. The temperature values given herein are primarily for purposes of illustration and may be varied to suit different requirements.
In order for the capillary tube 42 to respond to true evaporator temperature rather than air temperature and to obtain accurate temperature control it must control from the coldest point. In conventional practice this can only be accomplished if the capillary tube is securely and accurately positioned to be in direct contact with the evaporator surface over its full intended sensing contact area or length. To obtain uniform temperature calibrations for a multitude of cabinets of the same type, it is necessary that the same predetermined length of control bulb be arranged in heat exchange relationship with the evaporator wall in each cabinet and that this entire length be in heat relationship with the evaporator.
By the present invention the capillary tube 42 is positioned so as to respond to true evaporator conditions. To this end an open non-refrigerant passageway 50 is formed in the evaporator section 22. The passageway 50 as seen in FIG. 2 is positioned below the lowermost refrigerant pass 52 and the lower edge 54 of the evaporator 22. The passageway 50 extends across the full width of the evaporator and diverges downwardly and outwardly from a central apex 56. The capillary tube 42 is inserted the full length of the passageway 50 as shown by broken lines in FIG. 2 so as to be exposed to temperatures across the full width of the evaporator. For example, the temperature in the inlet area of refrigerant pass 52 might be different than that in outlet area of pass 52.
The length and cross-sectional area of the passageway 50 relative to the diameter and length of capillary tube 42 is such that the capillary tube 42 may be easily inserted therein while at the same time insuring that a thermal relationship is maintained between the capillary and evaporator. The capillary 42 is so positioned in the passageway 50 that it sees only the limited environment generated by the highly conductive walls of the passageway. In the control employed in carrying out the present invention the capillary controls from the coldest point along its length. The arrangement of the capillary and passageway extending across the evaporator insures that Off cycle will be initiated from coldest point along the width of the evaporator which is below freezing and an ON cycle which is initiated from the coldest part of the evaporator which is above the freezing temperature. The passageway 50 as stated above in effect creates an environment in which the capillary tube 40 can sense the true temperature of the evaporator.
By the present arrangement a constant temperature difference between the control capillary and the evaporator is generated which insures a consistent refrigeration cycle initiation and termination with respect to true evaporator conditions such as overall average temperature and frost conditions.
The capillary tube due to its location below the lowest refrigerant carrying pass senses the descending defrost water which impinges on the outer surface of the passageway. The above freezing temperature of the defrost water contacting the passageway 50 influences the temperature of the evaporator and accordingly the temperature sensed by the capillary tube 42. Defrost water impinging on the passageway 50 tends to flow downwardly toward the outer edges 32 and into trough 58 where it flows into a drain tube 60 to be disposed of by evaporation in the machine compartment 16 in any suitable manner (not shown).
While in the embodiment shown a single or one-piece evaporator is shown it should be noted that evaporator sections 20 and 22 may be separately formed and connected by appropriate refrigerant tubing.
Further, the passageway 50 may be formed by brazing or adhesively bonding a tube member to the plate evaporator. A tube so bonded to the evaporator would create the same environment for the capillary tube as formed passageway 50 does in that the capillary would still be in a position to sense true evaporator temperature.
It should be apparent to those skilled in the art that the embodiment described heretofore is considered to be the presently preferred form of this invention. In accordance with the Patent Statues, changes may be made in the disclosed apparatus and the manner in which it is used without actually departing from the true spirit and scope of this invention.

REX  (ZANUSSI)  RI230/2T Method for making an improved evaporator.

 A method for making an evaporator of the roll-bond type comprises a first step of inserting a return pipe (1) into a passage (3) formed between the two bonded sheets of the roll-bond evaporator (4), a second step of compressing said passage (3) about the terminal portion (8) of said return pipe so as to form a narrow and substantially annular space (12) between said roll-bond passage (3) and a length of said return pipe (1) inserted into said passage, and a subsequent third step consisting of the injection of a semi-fluid substance having sealing and adhesive properties into a further passage (9) obtained by suitably forming the two roll-bonded sheets and having one of its ends provided with a port (11) opening into said space (12), so that and until said substance progressively fills all or part of its volume.


1. A method for making an evaporator of the roll bond type, particularly for use in domestic refrigerating appliances, with a frist step comprising the insertion of a return pipe into a retrun passage formed between the two bonded sheet layers of the roll bond evaporator, a second step comprising the compression of said return passage about an end portion of said return pipe so as to form a narrow substantially annular space, preferably of a length of at least 20 mm, between the inner wall of said return passage and the outer face of said return pipe inserted therein, characterized by the provision of a third step comprising the injection of a semi-fluid substance having sealing and adhesive properties into a further passage (9) obtained by suitably shaping the two sheet layers of the roll bond structure, said further passage (9) having at one of its ends a port (11) opening into said space (12), so that and until said substance progressively fills all or part of the volume of said space.

2. A method according to claim 1, characterized in that said port (11) opens into said space (12) substantially adjacent the bottom thereof.

3. A method according to claim 2, characterized in that said sealing substance is of the anaerobic polymerization type.

4. A method according to claim 3, characterized in that subsequent to the filling of said space (12), the corresponding area of the roll bond structure is subjected to a heat treatment, preferably by induction heating, for the polymerization of said sealing substance.

5. A method according to claim 5, characterized in that said induction heating step is carried out for an interval of about 10 to 20 seconds.

6. A method according to any of the preceding claims, characterized in that said return pipe (1) is retained at a fixed position within said passage (3) during the subsequent three steps of the process.

7. A method according to any of the preceding claims, characterized in that the insertion of said return pipe (1) into said passage (3) is carried out so as to avoid any contact between the two components.

8. A method according to claim 7, characterized in that said space (12) has a width of between o.2 and o.5 mm.

9. A refrigerating appliance provided with at least one evaporator, characterized by being made with the employ of the method according to any of the preceding claims.

Description:
The invention relates to a method for fashioning a detail of an evaporator of the roll bond type for use in a refrigerating appliance, particularly of the domestic type, and to a refrigerating appliance equipped with an evaporator fashioned by employing this method.
The invention is in particular applicable to a refrigerator of the static function type or the forced circulation type, with a single capillary or twin capillaries. For the sake of simplicity, the following description will refer to the single-capillary type, it being understood, however, that the invention is similarly applicable to refrigerating appliances having more than one evaporator and a corresponding number of capillaries.
In refrigerant circuits for domestic refrigerating appliances of a known type, the capillary and the return pipe are connected to the evaporator by means of a "union" using a length of pipe, preferably aluminum pipe, to be inserted into a suitable cavity formed between the two aluminum sheets of which the well-known "roll bond" evaporator is composed.
As generally known, the employ of the roll bond technique permits the manufacture of the refrigerant circuit to be greatly simplified, although there are certain shortcomings known to those skilled in the art and relating to the method employed for making and connecting the evaporator.
As a matter of fact, in known refrigerating appliances equipped with a roll bond evaporator, the return pipe is compression-fitted thereto by exclusively mechanical means. This fitting technique is unable, however, to guarantee hermetic sealing at pressures of more than about 5 kp/cm<2>, so that under certain circumstances the high-pressure fluid tends to leak from the mechanic connection and to thereby escape from the refrigerant circuit.
The gravest inconvenience resulting from this technique is the possibility of the escape of gaseous refrigerant into the ambient atmosphere. This is because the connection of the return pipe to the return passage of the roll bond evaporator as well as the connection of the capillary to the are generally accomplished by the employ of well known procedures consisting in the compression from the outside of determined portions of the roll bond structure about the return pipe and the capillary at the locations of the return passage and the inlet pasage, respectively, of the roll bond evaporator.
This compression-fitting process may be accompanied by soldering the return pipe to the roll bond structure at the point of entrance, or by the application of an adhesive having suitable characteristics to the surface of the capillary and that of the return pipe at the respective compression-fitting locations.
The discussed shortcomings derive from the fact that the soldering operation is always a critical process with sometimes uncertain results, and in any case rather costly. For this reason the soldering method is whereever possible replaced by the application of adhesive at the compression-fitting locations.
On the other hand, however, the application of an adhesive to the surface of the return pipe to be inserted into the roll bond structure is not without problems caused for instance by the formation of bubbles in the thin adhesive coating or by the presence of adhesive-free areas resulting from the viscosity of the adhesive or from the adhesive being scraped off by mutual contact between complementary surfaces during the fitting process, which is usually a manual operation. Finally, the manual application of the adhesive may result in the presence of insufficient or excessive amount of adhesive on different surface areas, giving rise to faulty sealing.
The escape of the gaseous refrigerant cannot always be detected in the course of controls during the manufacturing process, particularly in the case of extremely small leaks. The full impact of the defect is thus noticed only after the refrigerating appliance has been put into use, requiring the manufacturer to carry out extremely onerous and laborious service operations, as well known by those skilled in the trade, without any remedy in sight.
The construction and maintenance of refrigerating appliances of this type are thus rendered rather complicated by the described operations which do not, moreover, lend themselves to being readily automatized.
It would therefore be desirable, and is in fact an object of the present invention, to provide a domestic refrigerating appliance in which the above discussed shortcomings are avoided without incurring construction complications or the necessity of novel technologies, so as to maintain low production costs.
These and other objects are attained in a refrigerating appliance as defined in the appended claims.
The invention will be more fully understood from the following description, given by way of example with reference to the accompanying drawings, wherein: fig. 1 is a diagrammatic illustration of a first step in the method according to the invention for sealingly connecting a return pipe to a roll bond evaporator, fig. 2 shows a second step of said method, and fig. 3 shows a third step of said method.


The method according to the invention is carried out in four distinct steps, the first one of which comprises the insertion of a return pipe 1, with a capillary 2 enclosed therein, into a passage 3 formed between the two sheet layers of a roll bond evaporator 4. The insertion of return pipe 1 into passage 3 has to be carried out in a manner ensuring that the two cylindrical elements are maintained substantially coaxial with one another, or at least with their respective surfaces out of contact with one another.
To this purpose the diameter of return pipe 1 is selected to be slightly smaller than that of passage 3, so that a space 12 of preferably about o.2 to o.5 is defined between the two respective surfaces.
As generally known, return pipe 1 is inserted to a predetermined position 5 of its inner end, while a certain length of capillary 2 projecting from the end of return pipe 1 extends through a restriction 6 formed in a linear extension 7 of return pipe receiving passage 3.
This positioning has to be maintained throughout the three subsequent steps of the operation, but then the operations of inserting the components and fixing them in position can be readily and fully automatised by one skilled in the art.
The second step comprises the compression of passage 3 about an end portion 8 of return pipe 1, and of restriction 6 about capillary 2, and is performed in the conventional manner.
The third step of the process comprises the injection of a semi-fluid substance having sealing and adhesive properties into a further passage 9 obtained by suitably shaping the two sheet layers of the roll bond structure. As clearly shown in the drawings, possage 9 has an outwards opening port 10 at one end, and at the other, a port 11 opening into the narrow space 12 defined between passage 3 of the roll bond structure and the length of return pipe 1 inserted thereinto.
It is important that port 11 opens into the bottom portion of space 12 as shown in the drawings.
The pressure applied for the injection of the semi-fluid substance is effective to ensure that the substance progressively and completely fills space 12 so as to fully replace the air originally contained therein, the length of space 12 having been selected with a view to achieving a reliable sealing effect.
It has thus been found that a length of space 12 of at least 30 mm is sufficient to ensure such reliable sealing effect to guard against gas losses, even when space 12 is not completely filled by the injected substance. Even when the air has not been completely displaced from space 12, leaving a small air pocket adjacent the closed end thereof, the desired sealing of the connection will not be impaired.
As a matter of fact, the hermetic sealing of the connection is substantially brought about by the injected adhesive substance forming an annular diaphragm between, and bonded to, the outer wall surface of return pipe 1 and the inner wall surface of passage 3, this diaphragm being impermeable to the passage of gas from one side thereof to the other.
The formation of an annular diaphragm having the above described sealing properties is ensured by the injection of the sealing substance through the port 11 located, as has been pointed out, closely adjacent the bottom of space 12.
It is preferable to employ a substance of the anaerobic polimerization type and of very low viscosity, and thus capable of penetrating even the smallest gaps of space 12 by capillary action.
Preferred in any case is the employ of a monocomponent anaerobic polymerization substance, for instance TOPFIX NA 84 supplied by CECA company, which requires a certain time for setting at least to a degree permitting the evaporator to be subsequently handled as for mounting it in a refrigerating appliance, without thereby endangering the previously obtained seal.
Since this time interval is usually not available in an automatized manufacturing process with high production rates, it is advisable to provide a fourth step which consists in performing a heat treatment of the area previously supplied with the sealing substance, preferably by subjecting the respective area to induction heating for a very short time, for instance 10 to 20 seconds, by the employ of a technique generally known to those skilled in the art.


At the end of this short period, the return pipe is perfectly sealed to the roll bond structure, so that the evaporator is ready for further processing.
The preceding description has been given on the assumption that the capillary 2 is contained within the return pipe 1. The teaching of the invention still holds valid, however, when the capillary 2 is to be connected to the evaporator independently of the return pipe.
The described method is thus conducive to obtaining the following advantages: a) Rapid establishment of the connection between the return pipe and the evaporator without the need for sealing gaskets or other auxiliary parts, and without the necessity of a soldering step, b) Simplified processing of the roll bond structure, c) Simplification and flexibility of the manufacturing process (to be carried out in separate steps capable of automatization), d) Overall economy of the manufacturing process. e) Above all, the quality of the connection is greatly improved as regards the obtention of a reliable seal, particularly with a view to not readily detectable slow leaks.
It is of course possible to design refrigerating appliances with modifications of what has been described above within the purvieew of the present invention.

REX  (ZANUSSI)  RI230/2T  DEVICE FOR DRAINING WATER FROM A REFRIGERATING APPARATUS ON DEFROSTING THEREOF:

 The invention relates to a device for draining water from a refrigerating apparatus flowing from the evaporator thereof during the defrosting phase. A device of this type essentially comprises a passage extending through a wall of the apparatus and communicating with a collecting receptacle for evaporating of the collected water. In known devices of this type, the passage tends to become obstructed by food particles, dust and the like carried in the drained water, necessitating the passage to be regularly manually cleaned by the user. According to the invention the passage has the approximate configuration of a venturi nozzle, resulting in an air flow passing therethrough in opposite directions as the door of the refrigerating apparatus is opened and closed, whereby the passage is reliably kept free of obstructions.




1. Device for Draining Water from a Refrig erating Apparatus on Defrosting Thereof Patent Claim A device for draining water from the evaporator of a refrigerting apparatus on defrosting thereof, said device comprising a water collecting receptacle located below said .vporator and dimensioned in conformity to said evaporator, a duct portion connected to said receptacle and paasng at least partially through a respective thermo-insulated wall of said apparatus, and optionally a drain conduit communicating with said duct portion and extending along the outer surface of said wall, said conduit terminating adjacent a further water collecting receptacle located in the lower portion of said apparatus, characterlged in that said duct portion (10) is of conical. configuration converging towards said wall (11) so as to define a passage (12) of reduced cross-sectional area, and in that there is provided at least one profile element (114) adapted to be secured through said wall (11) together with said duct portion (10), said profile element (114) being formed with a first conical portion (15) adapted to receive said duct portion (10) therein, and a second conical portion (16) converging towards said first conical portion (15) and formed with a projecting lip (17) at a position above said conduit (21).

Description:
Device for Draining Water from a Refrig erating Apparatus on Defrosting Thereof Description The present invention relates to a simple device for collecting the water set free by defrosting the evaporator of a refrigerating apparatus and for draining such water to the exterior of the apparatus.
As generally known the defrosting of the evaporator of a refrigerating apparatus is normally carried out by utilizing the heat produced by suitable electric heater elements disposed in heat-conducting contact with the evaporator, such heater elements being periodically energized and deenergized by thermostatic control means ip response to the terperature sensed thereby.
The water set free by the defrosting operation is usually collected in at least one receptacle disposed below the evaporator and dimensioned in conformity therewith. The collected water is then drained to the exterior of the apparatus through a cylindrical passage having a small cross-sectional area connected to the receptacle and extending through the rear wall of the apparatus.
The passage itself is connected to a further conduit having a larger cross-sectional area and extending vertically along 'the outer surface of the rear wall to terminate adjacent a further collecting receptacle provided in a lower part of the apparatus.
The water contained in the further receptacle is then progressively evaporated by the heat produced by the condenser of the apparatus, the latter being disposed along the outer surface of the rear wall of the apparatus and extending partially into the further receptacle.
In another embodiment the further receptacle is shaped to conform to a top portion of the compressor and disposed in heat-translttlng contact therewith, so that the water contained therein is progressively evaporated by the heat transmitted from the compressor to the receptacle, If in an apparatus of the type described the water collected in the receptacle contained within the refrigerating cell below the evaporator contains any food particles, dust or the like, the described passage and conduit tend to become clogged after some time, so that the water can no longer be drained from the interior of the refrigerating apparatus.
As a result, the water will overflow into the interior of the refrigerating cell, with the resultant annoyance to the user.
To avoid this troublesome occurrence, known refrigerating appliances are supplied with a small hand tool which may be inserted into the bores of the passage and/or conduit for cleaning them of obstructions of the type described above.
In practical use it has been found, however, that satisfactory results are only to be obtained if the user cleans the passage and/or conduit at regular intervals in accordance with the instructions by the manufacturer of the appliance.
On the other hand, however, the cleaning operation is often carried out in an erratic fashion or not at all, resulting in the passage and/or conduit becoming permanently obstructed, necessitating their replacement or repair by skilled service personnel.
The present invention aims at avoiding the occurrence of this trouble yb providing a device for draining the water from a refrigerating apparatus set free by defrosting there of, the main object of the invention being the provision of such a device of simple construction and simple and reliable operation, which is effective to prevent the formation of obstructions of the above described type without requiring any intervention on the user's part as in known appliances of this type.
These and other objects are attained according to the invention in a device for draining water from a refrigerating apparatus on defrosting the evaporator thereof, comprising a water collecting receptacle located below the evaporator and dimensioned in conformity thereto, a duct portion connected to said receptacle and passing at least partially through a respective thermo-insulated wall of the apparatus, and optionally a drain conduit communicating with said duct portion and extending along the outer surface of said wall to terminate adjacent a further water collecting receptacle disposed in a lower portion of the apparatus In accordance with the invention, a device of the type defined above is characterized in that said duct portion is of conical configuration converging towards said wall so as to define a passage of diminishing cross-sectional area,
and in that there is provided at least one profile element adapted to be secured through said wall together with said duct portion, said profile element being formed with a first conical portion adapted to receive said duct portion therein, and a second conical portion converging towards said first conical portion and formed with a projecting lip at a position above said drain conduit.
The specific construction of the device according to the invention ensures that the passages thereof are effectively cleaned of any food particles, dust and the like, without manual intervention by the user, on each opening and closing operation of the door of the refrigerating apparatus by the air flowing through the passage on each such opening and closing operation.
The characteristics and advantages of the invention will become more clearly evident from the following description, given by way of example with reference to the accompanying drawings, wherein: fig. 1 shows a diagrammtical cross-sectional view of a refrigerating apparatus equipped with a draining device according to the invention, and fig. 2 shows an enlarged detail of fig. 1.
A refrigeratign apparatus shown in the drawings is in the form of a domestic refrigerator 3 having a body 4 enclosing a refrigerating cell 5, and a door 6 hinged to the forward portion of body 4 for opening and closing cell 5 from in front of the apparatus.
Disposed in cell 5 is at least one evaporator 7 secured i a conventional manner to a rear wall 8 thereof. Below evaporator 7 rear wall 8 is integrally forked with a water collecting receptacle 9 dimensioned in conformity to evaporator 7.
Receptacle 9 serves the purpose of collecting the water leaking down from evaporator 7 when the latter is defrosted by means of conventional heater elements (not shown), and to direct the collected water to the exterior of the apparatus in a manner to be described.
The lower part of receptacle 9 is integrally formed with a duct portion 10 of conical configuration converging towards the thermo-insulated rear wall 11 of the apparatus (fig. 2).
Duct portion 10 is of a length permitting it to extend partially through rear wall 11, and is formed with a passage 12 of diminishing cross-sectional area.
Inserted between the inner panel 8 and an outer panel 13 of rear wall 11 is a profile element 14 cooperating with duct portion 10.
Profile element 14 has a first conical portion 15 dimensioned for receiving at least part of duct portion 10 therein, and a second conical portion 16 converging towards first conical portion 15 and formed with a projecting lip 17. Planar wall portions 18, 19 and 20 of profile element 14 permit the latter to be positioned in and secured to rear wall 11 of the refrigerating apparatus.
Profile element 14 is mounted in rear wall 11 by first pushing first conical portion 15 onto duct portion 10, followed by engaging wall portions 18 and 19 with outer rear wall panel 13, and wall portion 20 with inner rear wall panel 8 A further conduit 21 is secured in a con ventional manner tc the outer surface of outer rear wall panel 13 at a position below projecting lip 17 of profile element 124.
As shown in fig. 1, conduit 21 terminates at its lower end adjacent a further collecting receptacle 22 mounted on a cover 23 of the compressor 24 of the refrigerating appar-atus and shaped to closely conform to said cover.
Receptacle 22 is thus in heat-transmitting contact with compressor 24, so that the heat emitted by the latter is used for evaporating the water collected in receptacle 22.
Receptacle 22 is preferably provided with a partition 25 for preventing the water from splashing over the rim of the receptacle.
If there is only a very small vertical distance between lip 17 of profile element 14 and receptacle 22, conduit 21 may be eliminated, so that the water flows directly into the receptacle.
On the other hand, receptacle 22 may of course be of different design and located at other positions as in known refrigerating appliances, as long as proper evaporation of the collected water is ensured.
The formation of the restricted passage 12 at the point of convergence of conical portions 15 and 16 of profile element 14 results in the drain passage being effectively cleaned of food particles, dust and the like carried in the water set free by the defrosting operation, so that such water is alway reliably drained into collecting receptacle 22.
This cleaning operation takes place in an automatic manner on each opening and closing operation of door 6 as a result of air flowing through passage 12 in the directions of arrows A and B. respectively.
The water draining device according to the invention is of simple construction and reliable operation, and does not require manual intervention on the user's part for cleaning passage 12, so that the disadvantages and shortcomings of prior art draining devices are effectively eliminated.

ZANUSSI MEL ZEM E44601 R12, HERMETIC COMPRESSOR  INTERNAL VIEW.

Note: Picture showing a bigger model but equivalent construction taken as example.













 REX  (ZANUSSI)  RI230/2T  ZANUSSI MEL ZEM E44601 R12. HERMETIC COMPRESSOR Lubrication of sealed compressor:
 Improved lubrication of sealed compressors having a crankshaft provided with a longitudinal interior duct and a tubular member coupled to a lower end of the interior duct and having a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil. An upper end of the internal lubrication duct ends in a first substantially conical section and a second substantially cylindrical section of variable contour depending upon the profile of the upper end of the crankshaft. A spring may also be situated inside of the tubular member.
 1. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, said assembly also including a tubular member coupled to a lower end of said interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
an upper end of said interior lubrication duct ending in a first substantially conical section and a second substantially cylindrical section of variable contour depending upon a profile of the upper end of the crankshaft, and
the profile of the upper end of the crankshaft cutting the duct at a transition point between the second substantially cylindrical section of variable contour and the first substantially conical section.


2. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, said assembly also including a tubular member coupled to a lower end of said interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
an upper end of said interior lubrication duct ending in a first substantially conical section and a second substantially cylindrical section of a variable contour depending upon a profile of the upper end of the crankshaft,
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire formed as a closed loop ending with a lower leg extending towards the lower substantially conical portion of the tubular member.


3. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on a exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, said assembly also including a tubular member coupled to a lower end of said interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
an upper end of said interior lubrication duct ending in a first substantially conical section and a second substantially cylindrical section of variable contour depending upon a profile of the upper end of the crankshaft,
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire shaped as a substantially inverted U with two arms and bent according to a profile of the lower conical section of the tubular member.


4. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, said assembly also including a tubular member coupled to a lower end of said interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
an upper end of said interior lubrication duct ending in a first substantially conical section and a second substantially cylindrical section of variable contour depending upon a profile of the upper end of the crankshaft, and
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire shaped substantially as a U with upper free ends joined together and a lower end shaped according to a profile of the lower conical section of the tubular member.


5. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, the assembly also including a tubular member coupled to a lower end of the interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire formed as a closed loop ending with a lower leg extending towards the lower substantially conical portion of the tubular member.


6. In a sealed compressor including a sealed casing in which an alternating motor-drive compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof, the assembly also including a tubular member coupled to a lower end of the interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire shaped as a substantially inverted U with two arms bent according to a profile of the lower conical section of the tubular member.


7. In a sealed compressor including a sealed casing in which an alternating motor-driven compressor assembly is housed, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with points on an exterior surface of the crankshaft and with an upper end of the same eccentrically to the axis of rotation thereof. the assembly also including a tubular member coupled to a lower end of the interior duct of the crankshaft and comprising a substantially cylindrical upper section and a substantially conical lower section adapted to be submerged in oil,
the improvement comprising
a spring situated inside said tubular member,
wherein said spring is constituted by an elastic and resistant wire shaped substantially as a U with upper free ends joined together and a lower end shaped according to a profile of the lower conical section of the tubular member.


Description:
BACKGROUND OF THE INVENTION
The present invention relates to improvements in the lubrication system of sealed compressors for cooling fluids.
Sealed compressors for cooling fluids are known which include a sealed casing with an alternating motor-driven compressor assembly housed in the interior thereof, the assembly including a vertical-axis crankshaft provided with a longitudinal interior lubrication duct communicating with various points on the exterior surface of the crankshaft and with an upper end of the same, eccentrically to the axis of rotation thereof. The assembly also includes a tubular device coupled to a lower end of the interior duct of the crankshaft, such tubular device having a first upper section substantially cylindrical and a second substantially conical section with an end having an orifice for the introduction of oil.
In such compressors, the oiling of the parts that are in friction is accomplished by means of the oil fluid supplied by the tubular device, which, when rotating and immersed in an oil mass, produces by centrifugal force the raising of the oil through the interior duct of the crankshaft towards the oiling points of the mechanism. Part of the oil exits out of the eccentric orifice at the upper end of the crankshaft, propelled against the interior surface of the sealed casing of the compressor.
There are various patents that disclose particular details of this oiling or lubricating system. U.S. Pat. No. 3,410,478 discloses a cylindrical tubular device joined by a conical section, as well as a wall placed in the interior of the tubular device acting as a gate, such a wall being costly to construct. U.S. Pat. No. 3,451,615 discloses a lateral outflow passage from an eccentric upper section of the interior duct of the crankshaft.

Lastly, Spanish Patent No. 504,039 discloses a channel in the extreme upper face of the crankshaft, arguing the lower cost of constructing such a channel in relation to the lateral outflow passage disclosed in the aforementioned U.S. Pat. No. 3,451,615.
It has been possible to confirm that the current solutions of tubular pumping devices lose part of their effectiveness as the compressor's operating temperature rises. Under these conditions, the fluidity of the oil mass deposited in the housing of the compressor reaches a point such that the oil mass loses velocity of rotation in relation to the velocity of rotation of the tubular device. Such device loses effectiveness as a centrifugal pump due to sliding between the interior wall of the tubular device and the layer of oil in contact with the wall.
The aforementioned interior wall that acts as a gate may, in part, solve the problem described, but it has the drawback of having a high cost of construction. Moreover, the orifice at the upper end of the crankshaft should have a certain form, so that the oil that exits therefrom has sufficient force to be propelled against the interior wall of the sealed casing of the compressor. This certain form, in the compressors that are known, entails significant difficulties in construction.


SUMMARY OF THE INVENTION
With the improvements of the invention, the noted drawbacks can be eliminated.
Accordingly, it is an object of the present invention to eliminate the drawbacks noted above with respect to the prior art.
It is also an object of the present invention to simplify the lubrication of compressors.
It is another object of the present invention to lower manufacturing cost of a lubrication system for compressors.
It is a further object of the present invention to compensate for the decrease in oil viscosity caused by a rise in temperature in the lubrication system of a compressor.
These and other objects are attained by the present invention which is directed to improvements in the lubrication system of compressors for cooling fluids. According to the present invention, the upper end of the interior lubrication duct in a crankshaft of the compressor ends in a first substantially conical section and a second substantially cylindrical section of variable contour depending upon the profile of the upper end of the crankshaft. This distinct configuration of the upper end of the lubrication duct offers the advantage of greater simplicity in construction and consequently a lower manufacturing cost, while at the same time maintaining the same efficiency as other current forms of more complicated configuration.
Advantageously, the tubular device, which is coupled to the lower end of the interior duct of the crankshaft, is provided in its interior with a spring formed by an elastic and resistant wire affixed by means of pressure and by insertion of a part of the spring in a substantially conical section of the tubular device or member submerged in oil (the tubular device comprises a first substantially cylindrical upper section and a second substantially conical lower section adapted to be inserted into oil). The part of the spring submerged in the oil acts as a paddle propelling the oil, and thereby compensating for decrease in oil viscosity caused by the temperature.
The aforementioned spring may have various forms or structures in accordance with the present invention. In one embodiment, the spring forms a closed loop which ends with a lower leg thereof extending towards the lower substantially conical portion of the tubular device or member. In a second embodiment, the spring takes the form of two arms making a substantially inverted U, and bent according to the conical profile of the tubular device. In another embodiment, the spring takes the form of two arms shaped in a U and bent according to the conical profile of the tubular device and with the free ends thereof joined at the upper portion thereof.
All the noted spring shapes may be constructed with wire having a circular or a square cross-section so as to improve the attachment thereof within the interior of the tubular device or member.

BRIEF DESCRIPTION OF THE DRAWINGS
For a fuller understanding thereof, the present invention will be described in greater detail below with reference to the accompanying drawings in which certain embodiments of the present invention are schematically illustrated and to which the present invention is not intended to be exclusively restricted.
In the drawings,
FIG. 1 illustrates a longitudinal sectional view of a sealed compressor of cooling fluids, in which the improvements according to the present invention are applied;
FIG. 2 is a partially sectional side view of a crank shaft and of a tubular device having the improvements according to the present invention; and
FIGS. 3 and 4 each illustrate springs for the tubular device illustrated in FIG. 2.

DESCRIPTION OF THE PREFERRED EMBODIMENTS
Referring to FIG. 1, a compressor 1 includes a sealed casing 2 with an alternating motor-driven compressor assembly housed in the interior thereof, the assembly including a vertical-axis crankshaft 3 provided with a longitudinal interior lubrication duct 4 (FIG. 2) communicating with various points 5,6 on the exterior surface of the crankshaft 3, and with the upper end 7 of the same, eccentrically to the axis of rotation thereof. The assembly also includes a tubular device 8 coupled to a lower end of the interior duct 4 of the crankshaft 3, the tubular device 8 comprising a first upper section 9 that is substantially cylindrical and a second lower substantially conical section 10 to be submerged in oil.
As can be seen in FIG. 2, the upper end 7 of the lubrication duct 4 terminates in a first substantially conical section 11 and a second substantially cylindrical section 12 of variable contour depending upon the profile 13 of the upper end 7 of the crankshaft 3.
As also illustrated in FIG. 2, the tubular device 8 is provided in the interior with a spring 14 formed by an elastic and resistant wire, e.g. of tempered steel, and affixed by means of pressure and by insertion of part of the spring in the conical section 10 of the tubular device or member 8 which is adapted to be submerged in the oil. As shown in FIG. 2, the spring 14 takes the form of two arms 15 and 16 shaped into an inverted U and bent at points 17 and 18 according to the conical profile of the tubular device or member 8.
In FIG. 3, the spring 14 forms a closed loop 19 ending with a lower leg 20 thereof extending towards the lower conical part 10 of the tubular device 8.


The spring illustrated in FIG. 4 takes the form of two arms 21 and 22 in the shape of a U bent at points 23 and 24 according to the conical profile of the tubular device 8 (i.e. the lower substantially conical section 10 thereof) and with the free ends 25 and 26 thereof joined at the upper portion as illustrated.
As described above, the springs are introduced into the tubular device 8 with the lower portion thereof situated in the conical section 10 to be submerged in oil. When the crankshaft 3 rotates, driven by the rotor of the electrical motor, the tubular device 8 rotates along with spring 14, with the lower part of the spring submerged in oil acting as a paddle.
The characteristic form 11 of the outflow orifice in the upper end 7 of the lubrication duct 4 permits the oil that flows through the eccentric duct 4 to be propelled in a continuous jet against the interior wall of the casing 2.
It follows from the description above that the improvements according to the present invention allow for enhancement in the lubrication of the crankshaft and in the propulsion of oil against the interior wall of the casing 2 due to the springs 14 acting as paddles, and allows for a reduction in the cost of manufacture of the crankshaft 3 by simplifying the orifice at the upper end 7 of the crankshaft 3 without diminishing the effectiveness thereof. Similarly, the cost of construction of the spring 14 is much lower than the previously described interior wall with respect to the prior art.
The preceding description of the present invention is merely exemplary, and is not intended to limit the scope thereof in any way.

REX  (ZANUSSI)  RI230/2T Method of and apparatus for sealing tubes constructed of metals of high thermal and electrical conductivity:

 1. A method of welding together pieces constructed of metals of high thermal and electrical conductivity, wherein a piece to be welded is placed in contact with at least one electrode of negative temperature coefficient, so as to receive the heat energy which is developed therein when it is connected to a source of electricity.

2. A method as claimed in Claim 1, wherein the piece or pieces to be welded together are placed in contact with a pair of electrodes ol' negative temperature coeffici so as to establisll electrical continuity between said electrodes and receive the energy which is developed in these latter as a consequence of the establishment of the electrical continuity.

3. A method as claimed in the preceding Claims, wherein the electrodes are resiliently pressed on to the piece or pieces.

4. A method as claimed in the preceding Claims, wherein the welding is brazing.

5. A method as claimed in the preceding Claims, wherein the welding takes place as a result of plasticising.

6. A method as claimed In Claim 4, which is used for joining together elements of a refrigeration circuit, in particular a capillary tube and a tube of greater diameter.

7. A method as claimed in Claim 6, wherein the tiie tulle oi' greater diameter is previously deformed mechanically to provide a seati ii# i'c,r the capillary tube, and to form a socket region for receiving the brazing material

8. A method as claimed in Claim 4 and in one of the remaining Claims, wherein, at least llnti ] the moment in which the brazing material begins to melt, the intensity of the current circulating through the electrodes is kept at a higher value than during the time in which the electrodes are still maintained in contact witij at least one of the pieces to be joined together.

9. A method as claimed in Claim 8, wherein the intensity of the current circulating through the electrodes is decreased for at least part of the time subsequent to the moment in which the brazing material begins to melt, by connecting at least one resistive component in series with the electrodes.

10. A method as claimed in Claim 5 and one or more of the remaining claims, wllich is used for sealing a tube of a circuit containing a fluid under pressure.

11. A method as claimed in Claim 10, wherein the tube is meelBlically deformed on both sides of the weld before the weld is made.

12. An apparatus for carrying out the method as claimed in the preceding Claims, comprising at least one electrode ol' negative temperature coefficient, and means for connecting it to a source of electricity.

13. An apparatus as claimed in Claim 12, wherein the means izor connecting it to the source of electricity comprise the actual piece or pieces on which the electrode acts.

14. An apparatus as claimed in Claim 12 and/or 13, comprisillg a pair of electrodes of~ negative temperature coefficient which are mobile substantially in the same plane but in opposite directions, and between which the piece or pieces, used as tlie electrical connection means, are gripped

15. An apparatus as claimed in one or more of Claims 12 to 14, comprising a switch for connecting a resistive component I in series with the electrodes.

16. An apparatus as cm aimed in Claim 15, wherein the switch is controlled by a thermostat.

17. An apparatus as claimed in Claim 14, wherein at least one electrode is mounted resiliently yieldable in a mobile operating head wliicl, comprises at least one jaw for deforming the piece, in particular for mechanically closing a tube.

18. An apparatus as claimed in Claim 17, comprising two mobile heads and control means for moving said heads.


Description:
Method of and apparatus for welding together pieces constructed of metals of high thermal and electrical conductivity.
This invention relates to a method of welding together pieces constructed of metals, which can be different, but which have high thermal and electrical conductivity.
Although the invention can be applied to many fields, those of particular interest are a) joining a copper tube to an aluminium tube, for example in the refrigeration circuit oi' a domestic refrigerator, and b) sealing the copper tube through which the refrigerant fluid is charged into the refrigeration circuit of a domestic refrigerator.
In case a) , the copper tube can be the capillary tube and alluminium tube the evaporator and/or the suction tube of the compressor in the circuit. The capillary tube is that element of the refrigeration circuit in which the (theoretically isenthalpic) expansion occurs of the liquid refrigerating fluid whicli leaves the condenser to then enter the evaporator. As the undercooling of the capillary tube increases the useful effect of the refrigeration circuit, it is usual to insert a portion of the capillary tube in said suction tube.
It is therefore necessary to make at least one joint at the point in which the capillary tube enters the suction tube. A further joint is usually necessary at the point in wliic the capillary tube enters the evaporator, particularly if this latter is in the form of a tubular coil. As it must be ensured that the refrigeration circuit is absolutely hermetically sealed, the quality of the joints must be excellent, in spite of the difficulties due to tulle fact that the two pieces to be joined together are dii'ferent from each other, and have such a high electrical conductivity that it is impossible to make the joint by conventional resistance welding.

Again with reference to case a), a Jointing system is known which uses a short auxiliary copper tube having an outer diameter intermediate between the diameter of the capillary tube and the diameter of the aluminium tube. The capillary tube passes through said auxiliary tube, and is joined to one end thereof by torch brazing.
The other end of the auxiliary tube is joined to the aluminium tube by further brazing or by pressure welding.

This jointing system is certainly of good quality, but is relatively complicated and above all costly because of the copper construction of said auxiliary tube. The absolute value of this cost is very high when, in a modern industry, daily production amounts to several thousands of refrigerators.

With regard to case b), in the known method the copper charging tube is firstly closed by mechanical deformation using a clamp, and then, with the clamp applied, it is filled from its open end with a brazing material melted by means of a torch. This method has the disadvantage of not completely ensuring the opening of the welding zone, requiring the use of specialised labour and involving the use of a large quantity of brazing material when related to a daily production of several thousands of refrigerators.
The object of the present invention is to provide a new welding method, in particular for joining a copper capillary tube to an aluminium tube, and for closing the end of t}ie charging tube of a refrigeration circuit, in which low cost and simplicity of operation are attained together with excellent weld quality.
According to the method of the invention, a piece to be welded is placed in contact with at least one electrode having a negative temperature coefficient so as to recieve the heat energy developed in it when it is connected to a source of electricity.
In a preferred embodiment of the method ac cordillar to the invention, he piece or pieces to be welded together are placed in contact with a pair of electrodes having a negative temperature coefficient so as to establish electrical continuity between these electrodes and receive the heat energy which is developed in these latter as a consequence of establishing electrical continuity.
The term electrode having a negative temperature coefficient" indicates an electrode, the electrical resistallce of which decreases as the temperature increases.
The heat transmitted by the electrode or electrodes to the piece or pieces melts the welding material in contact with the piece, or at least transforms the piece into its plastic state so that, in this latter case, it is sufficient for the electrodes to exert a low pressure on the piece to form the weld.
The apparatus which enables the method to be carried out and is also part of the invention comprises at least one electrode of negative temperature coefficient, and meals lor connecting it to a source of electricity.
In the preferred embodiment of the apparatus, the mealls for connecting it to tulle source OS' electricity comprise the actual piece or pieces on which the electrode is to act.
In the most advantageous embodinlent of the invention, the apparatus comprises a pair of electrodes of Negative temperature coefficient, which are mobile sub staiitially in the same plane but in opposite directions, and between which are gripped the piece or pieces to be welded, these latter being utilised as the electrical connectioii means.
All the characteristics and advantages of the present invention will be apparent from the description given hereinafter (which, as a non-limiting example of application of this method, relates both to joining a copper capillary tube to an aluminium suction tube of the refrigeration circuit oi a domestic refrigerator by brazil and to sealing the end ol the charging' tube of such a refrigeration circuit) and from the accompanying drawing, in which:


: Figure 1 is a sectional diagrammatic view, through their axes, of two tubes during the operations involved in their joining; Figure 2 is a cross-section through said tubes on the line Il-Il of Figure 1 after the joint has been completed and the electrodes used have been removed; Figure 3 shows the electrical circuit used for melting the brazing material; Figure 4 shows the variations in the current intensity through the suction tube and its temperature adjacent to the electrodes during the joining by brazing; Figure 5 is a side view of the apparatus for welding (sealing) the charging tube of a refrigeration circuit; Figure 6 is a section on the line VI-VI of Figure 5, and Figure 7 shows a portion of the charging tube after its sealing.
With reference to Figures 1 and 2, a copper capillary tube 1 is inserted directly into a portion of an aluminium tube 2, for example representing the tube which constitutes the evaporator of a refrigeration circuit of a domestic refrigerator. There is thus a first great financial advantage in eliminating the aforesaid auxiliary copper tube. The aluminium tube 2 can have an outer diameter of 10 mm (against the 2 mm of the capillary tube 1), and has previously been mechanically deformed over a small portion 3 just after the mouth 4 to provide a flare 5 and a double lobed section at said portion 3 (see Fig. 2).
The brazing material and its de-oxidising agent are placed in the flare 5. These substances are indicated together by the reference numeral 6. The brazing material tried by the applicant in the example of the application of the method described here was the alloy known commercially as "So) dwiiol 1 265" of Messrs. Degussa ( the alloy carries the symbol L-CdZn 20, in accordance with D1N 1707). This is a eutectic cadmium-zinc alloy with Hs.5es of cadmium and a melting point of 266 C. The de-oxidising agent tried was wSoldaflux AL" of Messrs.
Degussa (carrying the symbol F-LW 3, in accordance with DIN 8511), its action being effective over the temperature range of 200 to 300 C.
According to the invention, the high conductivity of the aluminium with which the tube 2 is made is utilised to melt the brazing material. Thus the aforesaid technical and economical drawbacks due to the use of torch brazing are obviated. For this purpose, an electrical circuit (shown diagrammatically in Fig. 3) is constructed comprising the terminals 7 and 8 which receive an alternating single phase current from the secondary winding of a voltage step-down transformer (not shown), supply cables 9 and 10, and a pair of electrodes 11 and 12 of a material such as graphite which has a negative temperature coeffi cient. By the Joule effect, the electrical energy at the electrodes 11 and 12 is transformed into heat which reaches the brazing material by conduction through the tube 2.
These electrodes are brought into contact with the portion 3 of the tube 2 at the beginning of brazing. ln the electrical circuit diagrai ot' Fig. 3, the electrodes are shown as two variable resistor with the said reference numerals 11 and 12, whereas the reference numeral 13 indicates the resistance, obviously of extremely low value, of the tube 2 through which tulle circuit is made.
The circuit also comprises a switch 14 wlich, according to the control signals which it receives from the regulator 15, can be shifted from tulle contact 16 to the contact 17 to connect into the circuit a secondary branch 18 which comprises a high ohmic resist or 19.
The reglll ator 15 can be any device able to cause said resistor 19 to be connected in series with the electrodes 11 and 12 and tube 2 when the brazing material has reached its melting point, so reducing the current intensity l in the electrical circuit. In this respect, the applicant has fouiid that this lives an energy saving because the absorbed power of the circuit call be reduced by as much as 7596 during tlie second brazing stage (i.e.
when the switch 14 is closed on tlie contact 17) with respect to the first stage (i.e. when the switch 14 is closed on the contact 16). Advantageously, said regulator 15 is a rapid response thermostat, the sensor of which determines the temperature of the aluminium tube 2 in the immediate vicinity of the point in which it is joined to the capillary tube 1.
However, the regulator 15 can be in the form of a timer, provided it is known accurately after what time from the beginning of the operation the timer must shift the switch 14 from the contact 16 to the contact 17 (on the basis of all accurate trial run of the brazing operation).
The variation in current intensity I (measured in amperes) passing through the tube 2 during brazing, and the variation in temperature in C of this tube ( which can be sprayed with a conventional coolant after' brazing) shown in Figure 4 have been obtained by tests carried out by the applicant.
After the brazing material has melted, the electrodes 11 aiid 12 are removed from contact with the portion 3 of the tube 2, so that it is possible to remove this latter (now joined to the capillary tube 1) and proceed to a further brazing operation. In Figure 1 the approach and withdrawal of the tube electrodes are shown by arrows.
Fiiially, it silould be noted that in this example the el ectiodes do not exert any mechanical deformation action on the pieces to be joined together ( the tubes 1 and 2 in tills example). Thus(also because of the fact that the material of which the electrodes are made has a Ilegative tell1J#erature coefficient, i.e.
its electrical resistance decreases as its temperature increases) the method described herein is conceptually the opposite of collventional resistaiice welding of ferrous metals, which have a relatively high thermal and electrical conductivity.
The advalltages of the method according to the present invention can be suiirtriarised as follows: pieces made of materials of high electrical and thermal conductivity can be joined together by brazing other than torch brazing, and thus more simple to carry out and of much higher reliability; the energy consumption can be considerably reduced by not supplying excess energy when this is not required; in tlie particular case of joining a capillary tube to an aluniinium tube, it is no longer necessary to use an intermediate auxiliary tube.
With reference to Figures 5 to 7, which show the sealing of the tube for charging the refrigeration circuit of a domestic refrigerator with refrigerant fluid, the tube in question, constructed for example of copper, is indicated by the reference numeral 100. It is welded to the casing 101 which contains the compressor and its electrical drive motor (not shown), and communicates with the casing interior.
In order to introduce the refrigerant fluid, a connector element 102 incorporating a non-return valve 103 is mounted on the free end of tle tube 100 by well known methods. Again by well known methods, a charging pistol is connected to the connector element, and when operated causes pressurised refrigerant fluid to flow into the circuit. After the charging operation, the pistol is disconnected from the connector element, and the circuit then contains pressurised refrigerant fluid which cannot escape because of the non-return valve 103.
The problem solved by the invention is to properky seal the tube 100 after said charging operation, without usi)ig welding material.
According to the inventioll, the problem is solved by causing localised plasticising or fusion of the charging tube, mainly by the lleat given up by electrodes 104, 105 of negative temperature coefficient, for example of graphite, which are moderately pressed from opposing sides against the tube and thus cause permanent sealing of the tube by welding as a result of the plasticising or fus ioll .
Advai)te(J;eousiy, to prevent the pressurised refrigerant fluid iii the circuit from being able to escape through tlle passages wllic}l can open up in the plasticising or fusion zone, the tube is closed before welding and maintained closed during welding, by mechanical deformation exerted in a zone between the electrodes 104, 105 and the casing 101, and optiollally also in a zone between the electrodes and tulle free end of the charging tube.


The said operations are carried out by the device shown in Figures 5 to 7, comprising electrodes 104, 105 and means for localised temporary mechanical closure of the tube.
Tulle device in question comprises a pair of levers 106, 107 rotatable about their pivots 108, 109, and supported at their ends in a pair of parallel fixed side plates 110.
Each lever 106, 107 comprises at one end a working head 111 in which the electrode 104, 105 is disposed, and at the other end a roller 112 which, urged by springs 113, 114, is kept in contact with the end of a rod 115 of a piston 116. This piston is slidably mounted in a cylinder 117, and on one of its ends there acts a return spring 118 and on the other end there acts a pressurised fluid fed for example through a solenoid valve, not shown.
The end part 119 of the rod 115 is conical so that when the pressurised fluid is fed into the cylinder 117, the consequent movement of the piston 116 in the direction of the arrow A causes the levers 106, 107 to rotate in such a direction as to cause the working heads 111 to approach each other.
These heads comprise a fork structure with a pair of anns 12(), 121, the purpose of which is to deform the tube 100 at tlie two sides of the electrodes 104, 105 wheii the rod 115 is moved in the direction of the arrow A.
Each electrode 104, 105 is removably housed in a dovetail cavity 122 provided in a partly slotted metal block 123, with ducts 124 for the passage of cooling water ied through flexible hoses, not shown. Tlie block 123 is provided witlj a shank 125 of polyg'oiiai or square crosssection slidable in a bore of correspolldillg cross-section provided in tlie crosspiece 126 of tlse fork structure. The shank 125 comprises a head 127 against which a compression spring 128 acts,
its other end resting against a wall 129 rigid with the fork structure.
In the device concerned, the electrical circuit extends from the terminals B and C of an electricity source, through the electrodes 104, 105 and through the tube 100, when this latter is in contact with the electrodes.
The tube and electrodes are therefore in series when the device operates. The circuit is opened when the electrodes 104, 105 withdraw from the tube 100 following the return of the rod 115. Thus the welding operation, which will be discussed in greater detail hereinafter, can be controlled by the operator by operating the valve (e.g. a three-way valve) associated with the cylinder 117.
Operation is as follows: The two heads 111 are initially spaced apart from each other to allow the insertion of the tube 100 to be sealed (welded). When the tube is dosed between the heads, the operator feeds fluid under pressure to the cylinder 117. The rod 115 moves in the direction of the arrow A, the levers 106, 107 rotate about the pivots 108, 109, and the heads 111 approacl# the tube 100. The electrodes 104, 105 firstly touch the tube at the point N, but electricity is not as yet fed to the electrical circuit, even though this is ready to receive it.
The arms 120, 121 tlien act on the tube to deform it and close it mechanically in two zones K and M to tlie sides of the welding point N, this point being where the electrodes act.
The connector element 102 caii not be removed.
Electricity is now fed to the terminals B, C (e.g. by means of a contact) and flows in the circuit which is closed through the electrodes 104, 1()5 and tube 100. The electrodes 104, 105 progressively increase in temperature and thus heat point N to a sufficient extent to transform it into its plastic or partly molten state so that the small pressure wlsich the electrodes exert on the tube (by virtue of the springs 128) is sufficiei,# to produce deformation and corlsequent welding (when the opposing sides of the tube come into contact with each other).
On termination of welding (sealing), the operator unloads the cylinder 117, the two heads 111 withdraw from the tube and as the circuit is broken the electricity no longer traverses the electrodes 104, 105, which therefore cease to heat up.
The apparatus is thus ready for a new working cycle.
The present invention covers any other field of application of the described method, comprising the joining together of more than two pieces and the utilisation of the conductivity of all or some of the metals of which the pieces are constructed, to perform the welding, i.e. the fusion of the brazing materials.



Zanussi was an Italian producer of home appliances that in 1984 was bought by Electrolux . Zanussi is a leading brand for domestic kitchen appliances in Europe. Products have been exported from Italy since 1946.

The Zanussi Company began as the small workshop of Antonio Zanussi in 1916. The enterprising 26-year-old son of a blacksmith in Pordenone in Northeastern Italy began the business by making home stoves and wood-burning ovens.
After his father death in 1946 “Lino Zanussi” became the President of the company.
In the early 1970s Zanussi sold a lot in the UK and for some time after under the “Zoppas” brand, name which had been acquired, making Zanussi the first largest Italian appliance maker. They also produced washing machines Hotpoint for Hotpoint at this time which were very reliable and highly rated by users and engineers.
In the late 1970s and into the early 1980s the company had a range of washing machines which used an induction motor with a clutch pulley system. Again this range proved extremely popular and very reliable.
During this period Zanussi Professional, the catering range of appliances for commercial use, became a separate division in its own right.
In the early 1980s Zanussi launched the Jetsystem washing machine range to great acclaim whilst at the same time running the “Appliance Of Science” advertising campaign which is acknowledged as one of the most successful marketing campaigns of all time, in fact still remembered by many today. This gave the brand the impression of being forward thinking and innovative.
Zanussi has recently been rebranded as Zanussi-Electrolux in line with many other Electrolux brand names. Since that time many Zanussi appliances share common components and parts with the rest of the Electrolux range, primarily Electrolux, Tricity Bendix and AEG although it is worth noting that the “John Lewis” branded machines sold by the John Lewis Partnership in the UK are effectively rebranded Zanussi appliances.
In the late 1980s Zanussi launched the split tank design known as the “Nexus Tub” design which endures to this day with little change. The tub, base and certain other parts are made from a plastic material known as “Carboran” which can be re-used several times if recycled. To this day neither Zanussi or Electrolux has provided any way to return this material for recycling purposes.

Up until the end of the 1980s Zanussi service was run from Slough and was a network of independent repairers who gave an unparalleled service level. It is generally acknowledged within the industry that this service network was the best that there has ever been in the UK.
In the early 1990s Electrolux instigated amalgamating all its UK brands under one service entity. This entity was split, dependent on region, between the Zanussi service agents and the local Electrolux Service Centre. In general those in a high population density area where given to the Electrolux employed centres. Tricity Bendix, Electrolux and AEG as well as Zanussi were all to be serviced by the one network.
This was changed in the late 1990s and early 2000s as Electrolux sold or gave away the regional service centres, generally to the existing management or to area managers to run as independent businesses.
This service network was rebranded and became Service Force which still exists today but is, once again, all operated by independent service companies who repair and supply spare parts for all of the brands.................


 ..........................when the president Lino Zanussi died in a plane crash in June 1968 - Zanussi
Industries was the first Italian manufacturer of white goods and employs approximately 13000 employees.

When the Zanussi group of Pordenone lives a first phase of  financial stress then Lamberto Mazza, who succeeded Lino Zanussi, decides to liquidate some social funds with share capital held by Guido Zanussi  causing an outlay of 16 billion lire of that era.

Despite the Huge outlay to cope with such a withdrawal, the group aquired, in the course of 1970, competitor like Zoppas the other big Italian manufacturer of household appliances, which was,
significantly in debt due of an acquisition of Triplex in Solarolo and a construction of the new plant in Susegana.

The Zoppas, whose factories were located in Conegliano Veneto (TV), has a history quite similar to Zanussi: it is in fact founded by Ferdinand Zoppas in 1926 as an artisan company repair of wood-burning stoves and then spread widely and rapidly under the leadership of his sons Augusto and Gino.

Zanussi president, Lamberto Mazza, alleged a plan to achieve an optimal size to compete at the European level if not the world, strengthening the shares held by Zanussi on the Italian market to avoid  the entry of foreign competitors (in particular the U.S. Westinghouse).

The Financial stress imposed on Zanussi by acquisition of Zoppas and, simultaneously, the increase in the incidence both of labor costs and reasons of rise up of activity intensity (In the space of a short pass from 13,000 employees to 24,000 units?)  is faced with:

a. the sale to the German AEG-Telefunken
an amount equal to 25.01% of the Zanussi S.p.A.
(The operational holding company of the group)

(The share of ownership AEG-Telefunken is subsequently recognized in 1978 by Voet-Alpine.)


b. to loans from Italian Istituto Mobiliare
(IMI);

c.
about a loan of about two hundred million marks
disbursed in 1974 from Dresden Bank.

The union conflicts, the impact of labor costs (in 1974 Zanussi occupies nearly 31,000 employees), the Debt contract with institutions credit and the first oil shock induce Lamberto Mazza to start a rapid process of diversification The core of this strategy is, however, the belief that the market of appliance White has come to its stage of maturity, with a saturation level  and the consequent reduction of typical viability.

Therefore, in this back of years Zanussi invests substantial financial resources to acquiring control of businesses;

(The process of growth of Zanussi,  nevertheless sees the creation of new realities companys as a result of corporate spin-offs.

Considering, for example,

Zanussi Grandi Cucine SpA, Zanussi Grandi Impianti
SpA, Air Zanussi SpA, Zanussi Components for Construction SpA, the Industrialised Building ZanussiFarsura SpA to subsidiaries Iberian Zinsa-Zanussi Industrial SA Compania SA and Industrias Electrodomesticas,
and Lastly Anglo-Saxon Iaz International Ltd., was established in 1979
well as the company insurance and financial intermediation
group, called Infinas S.p.A.) with few exceptions   activities not related with the core business.

In particular, remembering the concentrations of corporate sectors relating to paper (Paper Mill Galvani SpA, Cartopiave SpA and subsidiaries Cartosud and Silica), electronic (Ducati Electrical, Electronics-Inelco), construction (Seicom-Building for Integrated Components SpA), metallurgical (Smalteria and Metallurgical Veneta SpA), hotel (Borsa SpA) of furniture (Galvani Porcelain SpA, Sambuceto SA, Meson's Spring SpA SpA and its subsidiaries and Pagnucco SpA), components (Ilpea Gomma SpA), photographic equipment ( Fotomec San Marco SpA) of entertainment
(Udinese Calcio SpA) and solar photovoltaics.

(The investments of Zanussi happenned sometimes even in the indirect form
 which is made through the CISVE (Industrial Consortium
Economic Development), founded by Lamberto Mazza in quality of
President of the association of Industrialists of Pordenone, as well, since 1978, through the Industrial Finance SpA, a company financial system constituted specifically for that.)

the Organization Company is  formed in a matrix in which the divisional activities and  are then grouped into the following sections:

1.apparatus for heating;
2.components for Building;
3.solar panels;
4.apparatus Idronet (for potability of the water);
5.components;
6.apparatus different from electronic television sets.

But when the financial situation Worsened in 1983,
Zanussi family the shareholder majority, distrusted Lamberto Mazza replacing him
initially with Umberto Cuttica, former manager of FIAT,
then later with Gianfranco Zoppas, husband of Antonia Zanussi and son Lino.

The corporate reorganization plan was then prepared by the new management and was designed to focus the now scarce financial resources in the core business of group, to continue or to divest a number of activities not closely related ( Air Zanussi, Zanussi Construction Industrialized, Zanussi Electronics, Paper Mill Galvani,Pagnucco, Fotomec, New Cartopiave) , thus preparing the field for the sale of the Entire group to Electrolux, the Swedish multinational leader in field of white goods.


Stern / REX / Zanussi / Seleco (WAS) is an electronics company based in Pordenone, Friuli Venezia Giulia, Italy. It is part of Super//Fluo, who bought the rights in August, 2006, along with Brionvega and Imperial.


Sèleco was born as in 1965 as a spin-off from the home appliances maker Zanussi. In the first years of his life, Seleco produced almost black and white televisions with the Zanussi or Rex brand. The company was being sold in 1984, and was first acquired by Gian Mario Rossignolo. He first became president and then main stockholder.
During the 1980s, the company launched worldwide marketing campaigns and began sponsoring some of the most famous Italian soccer team, such as Lazio A.S..
During the '90s, the company was mainly concentrated on the production of pay-tv decoders, but in 1993 suffered from a loss of competitivity. With the intent to reshape its position and to get gave new life to the company, Gian Mario Rossignolo bought Brionvega from the Brion family, the founder. This attempt get to nowhere, so the company was forced to declare failure in 1997. During the years, Sèleco has passed through ups and downs, at the end being overcome by the continuous changes in the electronics world.
After the crack-down, the company and all its interests were bought by the Formenti family. That gave life to the Seleco-Formenti Group, owner of the rights for the brands Sèleco, Rex, Phonola, Imperial, Stern, Phoenix, Televideon, Kerion and Webrik.
The Formenti family re-launched the company with the production of CRT-TVs. In 2000, the company suffered of a strong crisis, following the price dumping made by Turkish manufacturers. That seems to led to end of the Sèleco and Brionvega story, as the Sèleco-Formenti Group was forced to liquidation.
In 2004, the rights for the radio branch were bought by Sim2 Multimedia, and all the television interests (for the brands Sèleco, Brionvega and Imperial) were acquired by Super//Fluo in August 2006.

THIS INDUSTRY IS TODAY DEAD !!!!
